Aluminum in Power Engineering

Product Type: Aluminum busbars, tubular bus,wire rod,copper clad aluminum,enameled wires

Standards : ASTM B317, ASTM B236, IEC 60105, ISO 209-1, 2, DIN EN 755-2, EN 573-3, etc.

Alloy: 1060, 1350, 6060, 6082, 6101, 6061, 6063

MOQ: Generally, the trial order will be accepted.

Application:widely used in power engineering such as transmission and transformation stations, as well as in power equipment such as transformers.

Email ( sale02@xienuoenterprise.com )

we will reply to you within 24 hours.

Because aluminum has good electrical conductivity and is a perfect conductor of electricity, aluminum and copper together ensure the transmission of global electricity.

Aluminum and its alloys are also widely used in the production of electronic and microelectronic components, especially capacitors. It is also used in the production of antennas, including television antennas. This metal is used in radar structures. In some countries, even power towers are made of aluminum. Aluminum strips are also widely used in transformers.

Xienuo's Aluminum in power engineering includes: 1050/1060/1070 /1350 /1370 /6060 /6082 /6101 /6063 etc.

aluminum busbar

Hot selling aluminum types for electric power

EC grade aluminum busbar

  • 1060 EC aluminum busbar
  • 1350 EC aluminum busbar
  • 6060 EC aluminum busbar
  • 6082 EC aluminum busbar
  • 6101 EC aluminum busbar
  • 6061 EC aluminum busbar
  • 6063 EC aluminum busbar
  • Copper clad aluminum bus bar (CCA)

EC grade aluminum wire rod

  • 1350 EC aluminum wire rod
  • 1370 EC aluminum wire rod
  • 1050 EC aluminum wire rod
  • 1070 1080 EC aluminum wire rod
  • 6101 6201 EC aluminum wire rod
  • 8030 8076 EC aluminum wire rod

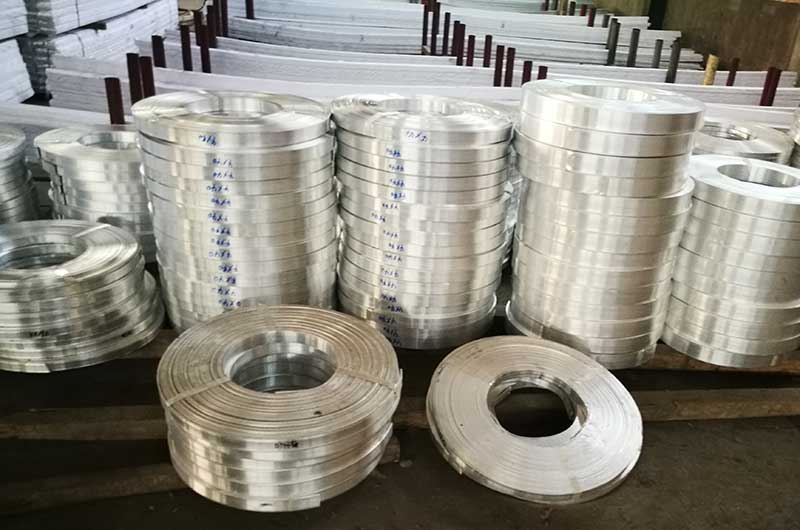

Aluminum foil and strips for transformer winding

  • 1050 Aluminum Strip For Transformer Winding
  • 1060 Aluminum Strip For Transformer Winding
  • 1070 Aluminum Strip For Transformer Winding
  • 1350 Aluminum Strip For Transformer Winding

Aluminum wire for electrical application

  • Aluminum cable conductor
  • Aluminum wire for cable shielding
  • Aluminum wire for electric traction
  • High strength aluminum wire (AAAC)
  • Medium-strength aluminum wire (ACSR)
  • Heat-resistant aluminum wire (TACSR)
  • Paper covered aluminum wire
  • Copper clad aluminum wire
  • 130/155 polyester enameled wire
  • 120 acetal enameled aluminum round wire
  • polyesterimide enameled aluminum round wires
  • 200 polyester/ polyamideiImide wire

Aluminum Vs Copper

Performance comparison

Basic comparison
Item Aluminum Copper
cost Lower High
Unit carrying capacity Low High
Conductivity Low High
density 2.7g/cm³ 8.960g/cm³

Ampacity comparison

Copper busbar vs. aluminum busbar ampacity comparison chart
Copper and aluminum bus bar ampacity comparison chart
Width/Thickness(mm) Emission structure 15×3 20×3 25×3 30×4 40×4 40×5 50×5 50×6 60×6 60×8 60×10 80×6 80×8 80×10 100×6 100×8 100×10 120×8 120×10 2 pcs 2 pcs
60×6 80×8
Copper BusBar TMY turn on lay flat 162 212 264 368 485 540 660 740 873 1018 1140 1115 1270 1430 1356 1565 1785 1860 1980 1340 1950
Put vertically 171 275 285 335 510 580 705 775 920 1070 1195 1205 1370 1540 1475 1685 1870 1955 2170 1410 2120
seal 130 175 215 315 400 440 540 605 718 837 935 915 1040 1170 1120 1280 1420 1485 1626 1017 1530
Weight per meter (kg) 0.40 0.53 0.66 1.04 1.40 1.74 2.18 2.61 3.13 4.18 5.22 4.18 5.57 6.96 5.22 6.96 8.70 8.35 10.50 6.26 11.14
Aluminum busbar
LMY
turn on lay flat 127 166 205 283 372 417 515 573 680 788 895 864 995 1115 1070 1220 1370 1420 1550 1035 1510
Put vertically 134 175 215 300 395 440 546 600 715 830 935 935 1070 1200 1160 1315 1475 1550 1760 1090 1650
seal 104 136 168 235 305 342 422 470 560 648 730 708 815 915 885 1000 1120 1177 1270 786 1191
Weight per meter (kg) 0.12 0.16 0.20 0.32 0.43 0.54 0.68 0.81 0.97 1.30 1.62 1.30 1.73 2.16 1.62 2.16 2.70 2.60 3.24 1.94 6.46

Copper and aluminum busbar ampacity calculation formula

Single layer busbar

Current carrying capacity Id (A) of a single-layer rectangular copper busbar at 40°C: Id = (b+8.5)h In the formula, b is the busbar thickness (mm); h is the busbar width (mm)

The current carrying capacity Id (A) of a single-layer rectangular aluminum busbar at 25°C: Id = (b+8.5)h. In the formula, b is the busbar thickness (mm); h is the busbar width (mm);

aluminum busbar

The relationship between the current carrying capacity of double-layer copper busbar and single-layer busbar at 40℃

I2=(1.56~15.8)Id In the formula, I2 is the carrying capacity of the double-layer copper busbar (A);

Id is the current carrying capacity (A) of the single-layer copper busbar.

1.56~15.8 is the coefficient. Generally, 1.58 is chosen for 100×10 bus; 1.57 is chosen for 80×10, 80×8, and 1.56 is chosen for 60×6.

The relationship between the current carrying capacity of a three-layer copper busbar and a single-layer copper busbar at 40°C

I3=2Id I3 is the carrying capacity of the four-layer copper busbar (A)

The relationship between the current carrying capacity of a 4-layer copper busbar and a single-layer copper busbar at 40°C

I4=2.45Id I4 is the carrying capacity of the four-layer copper busbar (A)

(Note: 2-layer and above copper busbars refer to an air gap equal to the thickness of the busbar between the two layers of busbars.)

Conversion relationship between busbar when the ambient temperature is 40℃ and when the ambient temperature is 25℃

I40=0.85I25

I40 is the current carrying capacity of the busbar at 40℃ (A);

I25 is the current carrying capacity (A) of the busbar at 25°C.

Conversion relationship between download flow for copper busbars and aluminum busbars of the same specifications under the same ambient temperature conditions

ICu=IAl*1.3

ICu is the current carrying capacity of the copper busbar;

IAl is the current carrying capacity of the copper busbar.

Comparison of uses

Uses: Aluminum vs. Copper
Aluminum Copper
Buses
Cast squirrel cage motors for Cast three-phase induction motors
Transformers
Low and medium voltage underground cables
All high and medium voltage overhead wiring Motors All telecom wiring
HV and EHV underground cables
Building wire

Transactions and Services

  • Production standards: GB, EN, ASTM, AISI, JIS, DIN or other standards required by customers.
  • Price Term: CIF CFR FOB EX-WORK
  • Payment Term: TT, LC at sight, West Union,
  • Package Type: Standard seaworthy export packing with craft paper, anti-blushing agent, transparent plastic protective film, wooden pallets. or according to the customers' request for aluminum circle
  • MOQ: Generally, the trial order will be accepted. The MOQ can be confirmed according to the different products. (100kgs for ready stock)
  • Supply Ability: 10, 000 Tons per Month
  • Additional services: sawing, milling, laser engraving, bending, anodizing, electrophoresis, spraying, conductivity testing, temperature resistance level testing, etc.
  • Dimensions: Complete molds, wide range of customization, and large quantities of some alloys in stock. Welcome to consult us.
  • Delivery time: fast delivery, as short as 3 days.

Why choose us?

Xienuo Enterprise is a professional extruded aluminum manufacturer in China, providing a complete set of aluminum solutions for power applications.

packaging

Product advantages:

  • Uniform color, smooth surface, clean, no oil spots, no color difference
  • Good quality, low price
  • Advanced and complete equipment, can customize various extruded aluminum materials
  • Complete testing equipment, capable of testing most conductive aluminum materials

Product certification: CE, ISO9001, etc.

Product testing: Support third-party testing, support conductivity testing, temperature resistance level testing, tensile strength testing, flatness testing and other testing to ensure that the aluminum materials for electricity delivered to customers are qualified.
